Wrist-ankle acupuncture has a positive effect on cancer pain: a meta-analysis



Wrist-ankle acupuncture (WAA) as a kind of micro acupuncture therapy has been used to management cancer pain, however, the effects of WAA on cancer pain were controversial in the current studies. Therefore, the purpose of this meta-analysis was to critically evaluate the effect of wrist-ankle acupuncture (WAA) on cancer pain.


Seven digital databases were searched from the inception of databases to July 2020, including CNKI, Wanfang, VIP, CBM, Cochrane Library, PubMed and Embase. Randomized controlled trials conforming to the inclusion and exclusion criteria were screened and extracted; the risk of bias was evaluated using the Cochrane Collaboration criteria. The primary outcome indicators included pain relief rate and pain score, and the secondary outcome was adverse reaction incidence. All analyses were performed with Review Manager 5.3.


A total of 13 studies with 1005 cancer patients (intervention group: 568, control group: 437) were included in this meta-analysis. The results demonstrated that the pain relief rate of experimental group (WAA / WAA + drug intervention) was better than that of control group (analgesic drug intervention), and the difference was statistically significant [RR = 1.31, 95%CI: 1.15 ~ 1.49, P < 0.01].


WAA has certain effect on cancer pain, and the effect of WAA combined with pharmacological intervention is better than that of drug therapy alone.

Peer Review reports


Cancer pain is caused by cancer itself or treatment and psychological factors, which is long-term and lasting [1, 2]. A study has revealed that 40% of early-stage cancer patients and 90% of advanced cancer patients experience moderate or severe pain, and 70% of the patients do not get sufficient pain relief [3]. Pain can interfere with daily activities such as sleep, mood and social intercourse, and seriously affect the quality of life of patients [4, 5]. Cancer pain is mainly controlled by opioids, and the commonly used drugs are oxycodone, morphine, fentanyl transdermal patch and codeine [6]. However, drug therapy has obvious toxic and side effects, and patients are prone to constipation, vomiting, urinary retention, delirium, dizziness, and other adverse reactions [7]. Additionally, long-term drug analgesia tends to increase the dosage of analgesics since patients will develop drug tolerance over time, which will aggravate the economic burden for patients due to high drug prices [8, 9]. Therefore, non- pharmacological therapies for cancer pain are attracting more and more attention.

Non-pharmacological intervention of cancer pain mainly includes psychological education intervention, cognitive behavior intervention, complementary and alternative medicine, and comprehensive non-pharmacological intervention [10]. Acupuncture is one of the complementary and alternative therapies. Acupuncture for analgesia has a long history in China and its use has been widely recognized and accepted [11]. Among them, wrist-ankle acupuncture (WAA) is a kind of micro acupuncture therapy invented by Professor Zhang Xinshu [12] of the Second Military Medical University in the 1970s. It is based on electrical stimulation therapy and combined with modern neurology theory and traditional acupuncture theory [9]. The acupuncture site of WAA is limited to the wrist and ankle, but the treatment range is all over the body, which features simple operation and high safety. Current clinical studies have indicated that WAA has significant efficacy in orthopedic pain, dysmenorrhea, soft tissue pain, toothache and so on [9, 13]. Zhou’s research demonstrated that WAA can increase serotonin levels in the brain, and raise the pain threshold to achieve pain relief [14]; and Chen’s study found that the analgesic effect of WAA may be associated with promoting the release of β-endorphins in plasma and inhibiting the production of substance P [15].

In recent years, studies comparing the effect of WAA on cancer pain with drug therapy have been increased significantly. Some studies showed that WAA or WAA plus pharmacological intervention was more effective while others had opposite results. Therefore, the purpose of this meta-analysis was to critically assess the effect of WAA on cancer pain so as to provide scientific reference for the development of intervention strategy for cancer pain.


This meta-analysis was performed following the PRISMA guidelines for systematic reviews and meta-analyses [16].

Searching strategies

This study systematically searched seven digital databases, which were China National Knowledge Infrastructure (CNKI), Wanfang, VIP, China Biology Medicine (CBM), Cochrane Library, PubMed and Embase from the inception of databases to July 2020 for randomized controlled trials (RCTs) without language restrictions. Two researchers independently read the title, abstract and full text to screen the studies that could be included in the meta-analysis. If there was any dispute, a third person was asked to reach a consensus. The search strategies for the English databases are shown in Additional file 1.

Inclusion criteria


Studies including adult patients (≥18 years) who were diagnosed with cancer and suffering from pain, regardless of cancer stage and current treatment, were eligible.

Interventions and controls

The intervention was wrist-ankle acupuncture alone or wrist-ankle acupuncture plus analgesics, while the control group was intervened with analgesics (drug types were not limited). The intervention group and the control group had the same drug intervention.


The outcome indicators were pain relief rate, pain score, and adverse reaction rate. The analgesic effects of the interventions were classified into four levels: (i) Complete Remission (CR): completely pain-free; (ii) Partial Remission (PR): substantial relief of pain and generally normal sleep; (iii) Mild Remission (MR): moderate relief of pain with residual pain and sleep disturbance; (iv) No remission (NR): no relief of pain. The pain relief rate was based on the significant effective rate (n (CR + PR) / n * 100%) [17].

Types of studies

Only RCTs were eligible.

Data extraction

The data were extracted and cross-checked by two researchers independently. In case of differences, a third party would be asked to judge. The basic data extracted mainly included the first author of the literature, year of publication, number of participants in the intervention group and the control group, age of participants, tumor type, intervention and control measures, indicators of effect evaluation and incidence of adverse reaction. If the key information was missing, the authors of the report were contacted to obtain the information.

Risk of bias assessment

Two reviewers independently evaluated the risk of bias using the Cochrane assessment tool, which consists of the following seven domains: “adequate sequence generation, allocation concealment, blinding of participants and personnel, blinding of outcome assessment, incomplete outcome data, selective reporting, and other bias” [16]. Each question can be rated as follows: yes (+), low risk of bias; unclear (?), unclear risk of bias; no (−), high risk of bias.

Data analysis

Review Manager 5.3 software was used for statistical analysis. Risk ratio (RR) was used for enumeration data, and standardized mean difference (SMD) was used for continuous data. Reporting and publication biases of the included studies were assessed by visually inspecting the asymmetry of the funnel plot. In each analysis, I2 was used to measure the statistical heterogeneity among the trials. If P > 0.1 and I2 < 50%, due to the homogeneity of the trials, the fixed effects model was used for analysis; if P < 0.1 and I2 ≥ 50%, the random effects model was used. If P < 0.1 and the source of heterogeneity was unidentified, a descriptive analysis was performed instead of a meta-analysis [16]. If moderate clinical heterogeneity was found, a subgroup analysis was conducted. Sensitivity analysis was used to explore the effects of the fixed effects model and random effects model analyses on heterogeneity results and the effects of any assumptions [18].


Literature search

Seven hundred eighth records in total were identified through database searching, of which 24 were duplicates. After a preliminary review of the titles and abstracts, 660 records were excluded for not meeting the inclusion criteria. Among the remaining 24 trials, 9 were excluded because the intervention measures used did not conform to the requirements, and 2 articles were duplicates. Therefore, a total of 13 trials were included [19,20,21,22,23,24,25,26,27,28,29,30,31], with a total of 1005 patients. The process of trial identification and selection is shown in Fig. 1.

Fig. 1

Flow chart diagram of trial identification and selection

Characteristics of the included studies

The general information of the literature included is shown in Table 1. The number of eligible studies published in 2018 and 2019 is largest, 3 articles a year. All the WAA interventions were conducted in China. The age of the participants ranged from 19 to 81 years; the participants were mainly male, and only one study had more than 50% female participants in the intervention group while other studies had less than 50% (except for those not reported). Among the included studies, seven studies were concerned with comprehensive cancer types; four were on hepatic carcinoma, and the remaining two were on gastric cancer and bone metastasis of prostate cancer. WAA intervention alone was reported in 6 studies, while WAA plus drug therapy was used in 10 studies. The specific characteristics of the included WAA intervention studies are shown in Table 2.

Table 1 Studies included in the systematic review
Table 2 The characteristics of wrist-ankle acupuncture intervention

Risk of bias in individual trial

The risk of bias as shown in Fig. 2 was moderate; blinding of participants and personnel was not applicable for WAA intervention, so the risk of performance bias was high in all studies. Ten studies reported the random sequence generation [20,21,22,23, 26,27,28,29,30,31], one of which was high risk [29]. However, no studies had reported the allocation concealment, and only 1 study reported blinding of outcome assessment and had a low risk [31].

Fig. 2

Risk of bias assessment using the Cochrane tool

Analysis of overall effects

Pain relief rate

Twelve articles [19,20,21,22,23,24,25,26, 28,29,30,31] reported pain relief rates of the intervention group and control group. The results demonstrated that the pain relief rate in the intervention group (including WAA group and WAA plus drug therapy group) was significantly higher than that in the control group (drug therapy group) [RR = 1.31, 95%CI: 1.15–1.49, P < 0.01]. The differences between the two groups in pain relief rate or pain score are shown in Fig. 3. The funnel plot (Fig. 4) indicated that the publication bias was mild, and the sensitivity analysis [RR = 1.38, 95%CI: 1.26 ~ 1.50, P < 0.01] revealed that the model was relatively stable.

Fig. 3

Forest plots of WAA/ WAA plus drug therapy versus drug therapy: a Pain relief rate; b Pain score

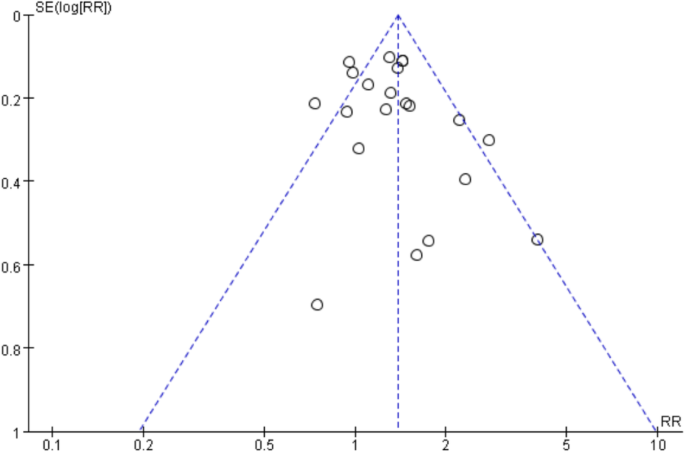

Fig. 4

Funnel plots of pain relief rates

The subgroup analysis was performed based on whether WAA was combined with analgesic drug therapy. The outcomes indicated that both the WAA alone group and the control group (using analgesics) had pain remission after intervention, but there was no statistical difference in pain relief rate between the two groups [RR = 1.13, 95%CI: 0.98 ~ 1.32, P = 0.09]. The pain relief rate of WAA plus drug therapy group was significantly higher than that of control group (using analgesics) [RR = 1.55, 95% CI: 1.26–1.91, P = 0.01]. The results of sensitivity analysis are displayed in Table 3.

Table 3 Results of subgroup analysis and sensitivity analysis of pain relief rate

Pain score

Five studies [20, 25, 27, 28, 30] reported the pain score before and after intervention. The pain scores of the intervention group and control group were both decreased after trials, and there were statistically significant differences in the scores within the group. The results of the meta-analyses demonstrated that there was a statistical difference in pain score between the intervention group and control group [SMD = − 0.91, 95%CI: − 1.70 ~ − 0.13, P = 0.02] (Fig. 3), and the sensitivity analysis also indicated statistically significant differences [SMD = − 0.75, 95%CI: − 0.95 ~ − 0.55, P < 0.01].

Adverse reactions rate

Seven studies [20, 21, 23,24,25, 28, 30] reported the adverse reactions rate clearly, with that of the intervention group being significantly lower than that of the control group (16.7% VS 60%; 8% VS 76%; 24.5%/ 95.1% VS 97.2%; 10%/ 30% VS 60%; 58.3% VS 75%; 18.75% VS 56.25%; 0% VS 20%). The main adverse reactions of WAA were subcutaneous hemorrhage and dizziness, and those of drug therapy were dizziness, nausea, vomiting, drowsiness, constipation, and urinary retention.


This meta-analysis included 13 medium-quality studies conducted on a total of 1005 participants. All studies did not report allocation concealment, and only one study reported blinding of outcome assessment. Seven studies were on mixed cancer types; four were on liver cancer and the remaining two were on gastric cancer and prostate cancer with bone metastasis.

The meta-analysis of pain relief rate showed that the pain relief rate in the intervention group (WAA/WAA plus drug therapy group) was significantly higher than that in the control group (drug therapy group). Simultaneously, the meta-analysis of pain score also demonstrated that the intervention group had statistically significant effect compared with the control group. However, the results of meta-analysis by Zheng Yi et al. [32] in 2014 indicated that there was no statistical difference between the intervention group (WAA/WAA plus drug therapy group) and the control group (drug therapy group) in pain relief rate, which may be related to the limited number and poor quality of included studies. In this study, more RCTs with higher quality published in recent 3 years have been included, and thus the results have higher reliability and acceptability.

Subgroup analysis was conducted based on whether WAA was combined with drug therapy, of which the results showed that there was no statistical difference in pain relief rate between the intervention group (WAA) and control group (using analgesics). However, the sensitivity analysis demonstrated that the difference was statistically significant, indicating that the results were unstable. The sample size of some included studies was too small [20, 21, 24], which may have influence on the results, so the results of this meta-analysis should be treated with caution. The pain relief rate of the WAA plus drug therapy group was higher than that of the control group (using analgesics), and the sensitivity analysis also showed the same results, indicating that the results were reliable. Therefore, more large-sample studies are needed to verify the difference in effect between WAA alone and drug therapy.

All the intervention groups (WAA/WAA plus drug therapy group) included in this study had a statistically significant pain relief. Meanwhile, WAA had faster and longer analgesic effect, so the number of pain outbreaks can be reduced effectively [20, 22, 23, 25, 28, 30]. Moreover, dosage reduction and drug withdrawal were also observed in the WAA plus drug therapy group [19, 20, 28, 31]. Seven studies reported the adverse reactions rate clearly, and that of the intervention group was significantly lower than that of the control group [20, 21, 23,24,25, 28, 30]. These findings indicate that WAA could relieve cancer pain better, reduce the dependence on analgesics, has fewer side effects, and therefore it is an economical and effective treatment for cancer pain.


Despite our comprehensive review of the literature on using WAA to treat cancer pain in cancer patients, the present study still has some limitations. First, the quality of the studies included in this meta-analysis is mediocre, and the report of sequence generation and allocation concealment is incomplete. Second, most included studies were written in Chinese, and only 2 English articles met the inclusion criteria, which has certain selection bias. Third, we were unable to conduct subgroup analysis on cancer types and explore the effect of WAA on different types of cancer, because the cancer type of most studies was comprehensive and there were few studies on a single type of cancer.


In conclusion, WAA has a certain effect on cancer pain. The analgesic effect of WAA plus drug therapy is better than drug therapy alone. Due to the medium risk of performance bias in the included studies, the findings of this meta-analysis should be interpreted with caution. Therefore, the efficacy of WAA alone still needs more larger-sample-size, high-quality and multi-center RCTs to verify in order to provide evidence for clinical treatment.

Availability of data and materials

Data supporting our findings are contained within the manuscript.



Wrist-ankle acupuncture


China National Knowledge Infrastructure


China Biology Medicine


Randomized controlled trials


Complete Remission


Partial Remission


Mild Remission


No remission


Risk ratio


Standardized mean difference


  1. 1.

    Deer TR, Smith HS, Burton AW, et al. Comprehensive consensus-based guidelines on intrathecal drug delivery systems in the treatment of pain caused by cancer pain. Pain Physician. 2011;14(3):E283–312.

    PubMed  Google Scholar

  2. 2.

    Cai W, Huang Y. A review of the studies on the nursing of pain in patients with cancer. J Nurs Adm. 2005;5(6):11–3.

    Google Scholar

  3. 3.

    Paley CA, Johnson MI, Tashani OA, et al. Acupuncture for cancer pain in adults. Cochrane Database Syst Rev. 2015;10:CD007753.

    Google Scholar

  4. 4.

    Oldenmenger WH, Geerling JI, Mostovaya I, et al. A systematic review of the effectiveness of patient-based educational interventions to improve cancer-related pain. Cancer Treat Rev. 2018;63:96–103.

    Article  Google Scholar

  5. 5.

    Von Moos R, et al. Improving quality of life in patients with advanced cancer: targeting metastatic bone pain. Eur J Cancer. 2017;71:80–94.

    Article  Google Scholar

  6. 6.

    Shiying Y. Interpretation of cancer pain diagnosis and treatment standard and self-evaluation standard of demonstration ward. Chin J Pain Med. 2012;18(12):706–8.

    Google Scholar

  7. 7.

    Zhang W. Clinical observation of jiawei banxia xiexin decoction in the treatment of constipation caused by oral opioids in patients with cancer pain. Heilongjiang Province: Heilongjiang University of Traditional Chinese Medicine; 2019.

    Google Scholar

  8. 8.

    Liu D, Sun S, Huang W. Influencing factors and research progress of cancer pain control. Chin J Gerontol. 2013;33(23):6067–9.

    Google Scholar

  9. 9.

    Ma L, Zhou Q. Clinical application and mechanism analysis of wrist-ankle acupuncture against pain. World Chin Med. 2017;12(11):2847–50.

    Google Scholar

  10. 10.

    Feng Z, Jing Z. Research progress of non-drug intervention methods for cancer pain. J Nurs Educ. 2020;35(08):723–6.

    Google Scholar

  11. 11.

    Filshie J, Hester J. Guidelines for providing acupuncture treatment for cancer patients-a peer-reviewed sample policy document. Acupunct Med. 2006;24(4):172–82.

    Article  Google Scholar

  12. 12.

    Zhang X, Ling C, Zhou Q. Practical wrist and ankle acupuncture. Beijing: People's Medical Publishing House; 2002. p. 23–8.

    Google Scholar

  13. 13.

    Wang Q, Zhou Q. Theoretical origin and clinical application of wrist- ankle acupuncture therapy. Chinese Acupuncture & Moxibustion. Zhongguo Zhen Jiu. 2017;37(5):509–12.

    PubMed  Google Scholar

  14. 14.

    Zhou Y, Liu Y, Jiena F, et al. Effect of ankle three on central analgesic transmitters in rats with root pain caused by lumbar disc herniation. Chinese Acupuncture Moxibustion. 2007;27(12):923–6.

    CAS  PubMed  Google Scholar

  15. 15.

    Chen B, Wang T, Yang X, et al. Analgesic effect of wrist-ankle acupuncture and its impact on plasma β-EP and SP contents in patients with cervical Spondylosis. Shanghai J Acupuncture Moxibustion. 2018;37(12):1419–23.

    Google Scholar

  16. 16.

    Moher D, Liberati A, Tetzlaff J, Altman DG. Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. BMJ. 2009;339:b2535.

    Article  Google Scholar

  17. 17.

    Zhou Q, Hu X, Wei G, et al. Clinical observation on efficacy of wrist-ankle acupuncture in Reliveing moderate and severe pain of patients with liver Cancer. J Zhejiang College Tcm. 2005;29(1):53–5.

    CAS  Google Scholar

  18. 18.

    Dong B, Xie C, Jing X, et al. Yoga has a solid effect on cancer-related fatigue in patients with breast cancer: a meta-analysis. Breast Cancer Res Treat. 2019;177(1):5–16.

    Article  Google Scholar

  19. 19.

    Shen S-e. Clinical observation on the analgesic effect of wrist-ankle acupuncture plus drugs on cancer patients. Chinese Acupuncture Moxibustion. 2000;2000(03):15–6.

    Google Scholar

  20. 20.

    Xia H. Clinical studies on efficacy of wrist-ankle acupuncture in relieving the moderate and advanced pain of the patients with hepatocarcinoma. Shanghai: The Second Military Medical University; 2004.

    Google Scholar

  21. 21.

    Gao H, Chen Y. Wrist-ankle acupuncture in the treatment of 25 cases of moderate and severe liver cancer pain. Chin Community Doctors. 2012;14(29):176–7.

    Google Scholar

  22. 22.

    Zeng K, Dong HJ, Chen HY, et al. Wrist-ankle acupuncture for pain after Transcatheter arterial chemoembolization in patients with liver Cancer: a randomized controlled trial. Am J Chin Med. 2014;42(2):289–302.

    CAS  Article  Google Scholar

  23. 23.

    Dong Y, Zhou H, Jia Y, et al. Clinical observation of the analgesic effect of wrist- ankle acupuncture for patients with primary hepatic carcinoma after TACE. J Intervent Radiol. 2015;24(10):914–6.

    Google Scholar

  24. 24.

    Wang F, Hu G, Lin L, et al. Observation on the effect of wrist-ankle acupuncture on cancer pain. People’s Mil Surg. 2017;60(01):56–7.

    Google Scholar

  25. 25.

    Dong Y, Yang Y, Yuanyuan JIA, et al. Effect of wrist-ankle acupuncture on cancer pain in community cancer patients. J Clin Nurs Practicality. 2018;3(11):99–100.

    Google Scholar

  26. 26.

    Zhang B. Clinical observation of wrist-ankle acupuncture in the treatment of moderate epigastric pain in advanced gastric cancer. Zhejiang J Integrated Tradit Chin Western Med. 2018;28(09):781–2.

    Google Scholar

  27. 27.

    Jinying S, Lei J, Zimei D. Clinical effect of wrist-ankle acupuncture in the treatment of mild to moderate pain caused by bone metastasis of prostate cancer. Nurs Pract Res. 2018;15(07):74–6.

    Google Scholar

  28. 28.

    Yang F, Hu M, Wang X, et al. Clinical observation of wrist ankle acupuncture combined with morphine in the treatment of 16 cases of refractory cancer pain. J Tradit Chin Med. 2019;60(09):768–72.

    Google Scholar

  29. 29.

    Luan Y, Wang H, Lin G, et al. Wrist-ankle acupuncture combined with opioid analgesics in the treatment of cancer pain. Yunnan J Trad Chin Med Materia Medica. 2019;40(10):95–6.

    Google Scholar

  30. 30.

    Wu Q, Wen CAO, Wang W, et al. Wrist-ankle needle combined with opioid drugs on refractory cancer pain: a randomized controlled trial. Chinese Acupuncture Moxibustion. 2019;39(10):1051–4.

    PubMed  Google Scholar

  31. 31.

    Xu L-P, Yang S-L, Shao-Qing S, et al. Effect of wrist-ankle acupuncture therapy combined with auricular acupuncture on cancer pain: a four-parallel arm randomized controlled trial. Complement Ther Clin Pract. 2020;39:101170.

    Article  Google Scholar

  32. 32.

    Zheng Y, Yonghui YU, Fang F. Wrist ankle acupuncture for cancer pain: a meta-analysis. J Liaoning Univ Tradit Chin Med. 2014;16(01):152–5.

    Google Scholar

Download references


Not Applicable.


This study was supported by National Natural Science Foundation of China (Grant No. 81801098) and the Humanity and Social Science Youth Foundation of Ministry of Education of China (Project No. 18YJCZH164). The funders had no role in the design of the study, or collection, analysis, and interpretation of data or in writing the manuscript.

Author information




DB, CQY and TL performed the meta-analysis and wrote the first draft of manuscript, DB, QYS, WF and QKY systematically searched and selected the literature, TL and LL revised the final manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Li Tian.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors have no conflicts of interest to disclose.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit The Creative Commons Public Domain Dedication waiver ( applies to the data made available in this article, unless otherwise stated in a credit line to the data.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Dong, B., Lin, L., Chen, Q. et al. Wrist-ankle acupuncture has a positive effect on cancer pain: a meta-analysis. BMC Complement Med Ther 21, 24 (2021).

Download citation


  • Wrist-ankle acupuncture
  • Pain
  • Cancer
  • Meta-analysis
  • Randomized controlled trial
